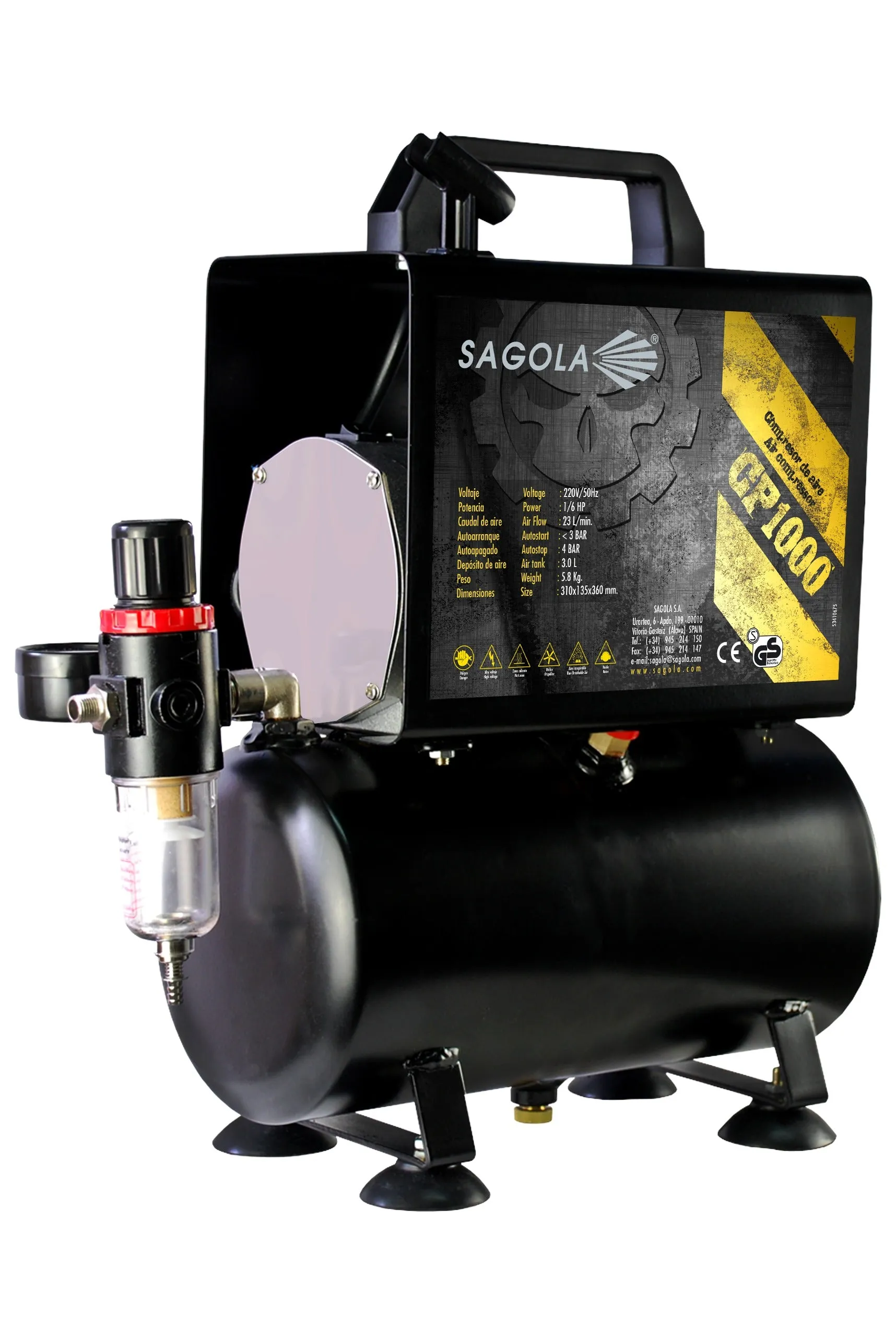

Sagola CP 1000 Compressor
Manufacturer: Sagola
Part #: PT10620702
Description: The Sagola CP 1000 Compressor includes:
- Single cylinder piston compressor for use with the XTech range of airbrushes.
- Compact, powerful, and reliable.
- Minimum maintenance.
- Ultra silent. Minimum noise level.
- Includes filter and air outlet regulator.
- Automatic stop switch.
Literature:
Specifications:
| Power | 1/6 HP |
| Air Flow | 23 L/min |
| Auto Start at less than 3 bar | Yes |
| Auto power off at 4 bar | Yes |
| Air outlet | 1/8" male |
| Air tank | 3 L |
| Weight | 5,8 Kg |
| Dimensions | 310x135x360 mm |
| Sound level | 47 Db |
Spare Parts:
| Ref. No. | Part No. | Description |
| 1 | Tank Air Pipe Kit | |
| 2 | PT52350403 | N/A |
| 3/1 | Capacitor; 220V | |
| 3/2 | Capacitor; 110V | |
| 4 | Power Switch | |
| 5 | Motor Closing Gasket | |
| 6/1 | PT49000654 | N/A |
| 6/2 | Stator, Rotor & Bearings Kit; 110V/60Hz | |
| 7 | Rotor Bearing | |
| 8 | Motor Drain Valve | |
| 9 | Safety Valve | |
| 10 | Support Legs (x4) | |
| 11 | Analogue Pressure Gauge | |
| 12 | Air Filter Regulator Kit | |
| 13 | Protective Cover | |
| 14 | Air Brush Support Kit | |
| 15 | Handle & Screw Kit | |
| 16 | Cylinder & Compression Ring Kit | |
| 17 | Rod Set | |
| 18 | Cover Head Valve Parts Kit | |
| 19 | Cover Head Kit | |
| 20/1 | Pressure Switch; 220V | |
| 20/2 | Pressure Switch; 110V | |
| 21 | Head Kit |
